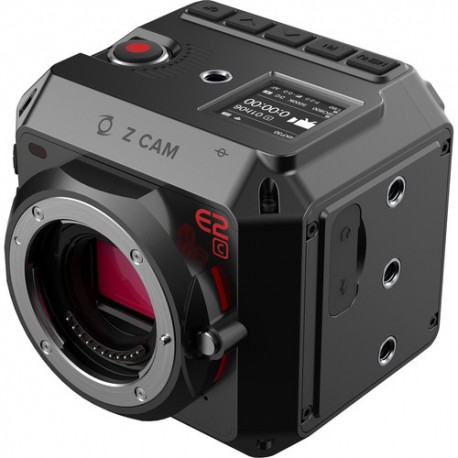

Z CAM E2C Professional 4K Cinema Camera (MFT)

Reference: ZC109864

Condition: New product

Availability: This product will be available later

The Z CAM E2C Professional 4K Cinema Camera shoots UHD 4K at up to 29.97 fps, as well as HD up to 59.94 fps, and records to an SDXC Class 10 card (not included). The camera features a 4/3" sensor with 10-bit color support and nominal 11.5 stops of dynamic range. The camera supports recording video in MOV/MP4 using H.265 for 10-bit recording, while H.264 supports 8-bit recording, and a recent firmware update allows the camera to record in the ZRAW format. Audio is recorded in 24-bit 48 kHz using AAC or PCM (PCM for MOV format only).

You can use an available iOS app to control the camera via Wi-Fi and to view a live image preview. You can also control it locally by the buttons along the front edge of the camera. The camera powers via PoE, an LP-E6-series battery (not included), or via a DC input port. An included LEMO to D-Tap power cable allows you to power the camera from a D-Tap source. An optional AC to DC power adapter can also power the camera.

More details

Send to a friend
Send to a friend

Z CAM E2C Professional 4K Cinema Camera (MFT)
The Z CAM E2C Professional 4K Cinema Camera shoots UHD 4K at up to 29.97 fps, as well as HD up to 59.94 fps, and records to an SDXC Class 10 card (not included). The camera features a 4/3" sensor with 10-bit color support and nominal 11.5 stops of dynamic range. The camera supports recording video in MOV/MP4 using H.265 for 10-bit recording, while H.264 supports 8-bit recording, and a recent firmware update allows the camera to record in the ZRAW format. Audio is recorded in 24-bit 48 kHz using AAC or PCM (PCM for MOV format only).

You can use an available iOS app to control the camera via Wi-Fi and to view a live image preview. You can also control it locally by the buttons along the front edge of the camera. The camera powers via PoE, an LP-E6-series battery (not included), or via a DC input port. An included LEMO to D-Tap power cable allows you to power the camera from a D-Tap source. An optional AC to DC power adapter can also power the camera.
Recipient :
Name of your friend ^* :
E-mail address of your friend ^* :
^* Required fields
or Cancel
Share on Facebook!
Print

More Info

Included:

Z CAM E2C Professional 4K Cinema Camera
LEMO Power Cable with D-Tap Plug
Lens Mount Cap

irmware 0.88 Update
Firmware 0.88 brings ZRAW recording to the camera.
4K Capture and Recording

    Unburdened by a recording time limit, you can record UHD 4K at up to 29.97 fps or 1080p at up to 59.94 fps, for up to the limit of your recording media's capacity
    CMOSW sensor with 11.5 stops of dynamic range (Z-Log2)
    The camera supports REC.709, Z-Log2, FLAT, and HLG
    H.265 (10-bit color) internal recording on SDXC Class 10 cards, UHS-1 Speed Class 3 recommended
    Video output through HDMI 2.0 is supported
    Full metal housing for efficient heat dissipation

Interfaces and Expandability

    USB 3.0 Type-C for camera control and data transformation only
    Ethernet port for live view, control, and file transfer to browser or a computer running Z CAM software
    LANC port for remote control including power on/off

iOS App
Z Camera is a mobile application for camera live preview and control through Wi-Fi. It allows you to start/stop recording and adjust the camera settings remotely, and also has advanced features on camera live preview.
Camera Settings

    White balance: Auto, preset, manual (2300 to 7500K)
    Focus modes: MF, AF, CAF
    Image: Brightness, contrast, saturation, sharpness
    LUT: REC. 709, Z-Log2, FLAT, HLG
    Timecode: Current time, manual input

Camera Body

    Made from aluminum for strength and heat dissipation
    There are nine threaded mounting holes around the outside chassis
    Sensor plane marking for accurate distance measurements
    Powers from optional AC/DC adapter or optional LP-E6-series batteries
    Active MFT mount
