Sekonic C7000 Spectromaster

C-7000

New product

Availability: This product will be available later

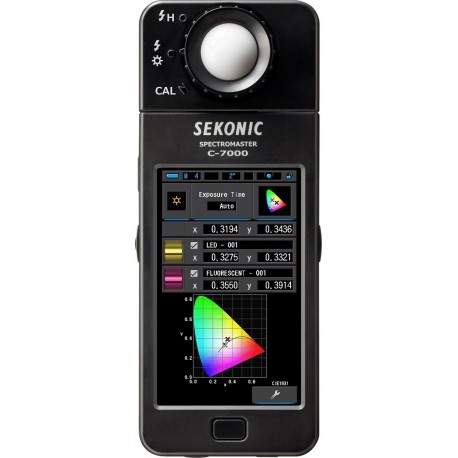

The SPECTROMASTER C-7000 is a portable handheld spectrometer, designed especially for industrial use.

Utilizing Sekonic’s CMOS linear image sensor design and large touch-screen color display, the C-7000 can measure and accurately describe LED, HMI, fluorescent, as well as natural light and electronic flash.

The C-7000’s Utility software (only Windows version available), displays memorized data in several ways and outputs spectral data in 1nm (nanometer) increments in CSV format.

The C-7000 is an important measuring tool for quality control in lamp manufacturing, medical facilities, educational / office safety and health standards, agricultural lighting / design and many more industrial uses.

More details

2 239,00 € tax incl.

2 599,00 € tax incl.

More Info

Illuminance Meter Class

* Class A of JIS C 1609-1: 2006 “Illuminance meters Part 1: General measuring instruments”

* DIN 5032 Part 7 Class C

Sensor

CMOS linear image sensor

Spectral Wavelength Range

380nm to 780nm

Output Wavelength Pitch

1nm (Requires the C-7000 Utility to output memorized data)

Spectral Bandwidth

Approx. 11 nm (half bandwidth)

Measuring Range

Ambient light: 1 to 200,000lx (= 0.1 to 18,600fc), 1,563 to 100,000K (more than 5lx required)

Flash light: 20 to 20,500lx • s (= 1.86 to 1,900fc • s), 1,563 to 100,000K

Accuracy (Standard Illuminant A)

Illuminance: ±5% + 1digit (1 to 3,000lx)

x,y: 0.003 (Standard Illuminant A, 800lx)

Repeatability (Standard Illuminant A)

Illuminance: 1%+1 digit (30 to 200,000lx), 5%+1 digit (1 to 29.9lx)

x,y: 0.001 (500 to 200,000lx)

x,y: 0.002 (100 to 499lx)

x,y: 0.004 (30 to 99.9lx)

x,y: 0.008 (5 to 29.9lx)

Visible-region Relative Spectral Response Characteristics (f1’)

9% or less

Cosine Response (f2)

6% or less

Temperatutre Characteristic

Illuminance: ±5% of indicated value

x,y: ±0.006 (Standard Illuminant A, 1000lx)

Humidity Characteristic

Illuminance: ±3% of indicated value

x,y: ±0.006 (Standard Illuminant A, 1000lx)

Power Source

AA (1.5V) x 2 pcs, USB bus power

Measurement Time

Ambient: Auto - Max.: 15 sec., Min.: 0.5 sec.

Ambient : Manual - 0.1s, 1sec.

Flash: 1 to 1/500 sec. (in 1 step)

Measuring Modes

Text mode, Spectrum mode, Spectrum Comparison mode, CRI mode, CIE1931 (CIE1964) mode, CIE1931 (CIE1964) Comparison mode, CIE1976 mode, CIE1976 Comparison mode

Other Functions

Up to 999 memory, Preset function, Auto power off, Auto Dimmer, 2 or 10 deg. Filed of View Setting

Display languages

English, Japanese, Chinese (Simplified) - factory preset, user cannot change.

Interface

USB 2.0

Operating Temperature

-10 to 40 ºC

Storage Temperature

-10 to 60 ºC

Dimensions

73mm (w) × 183mm (h) × 27mm (d) = 2.9” (w) x 7.2” (h) x 1.1” (d)

(excluding protruding part of light receiving) max. thickness 40mm (d) = 1.6” (d)

Weight

230g without batteries
