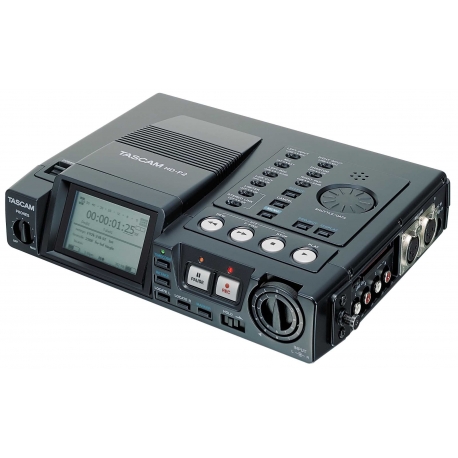

Tascam HD-P2 Portable High-Definition Stereo Recorder

Reference: HDP2

Condition: New product

Availability: Order delay approx. 10 days

Answering the call of remote recording engineers, the HD-P2 is the professional solution for the challenging requirements of live and on-location applications. It writes uncompressed Broadcast Wave audio files at up to 192-kHz/24-bit resolution for audiophile quality to CompactFlash media. Files are instantly available through the built-in high-speed FireWire computer connection and can be loaded into DAW projects with sample accuracy.

Unlike consumer MP3 sketchpads, the professional HD-P2 incorporates high-end features like SMPTE timecode and clock input for synchronization to video recorders or other external devices while in record or playback. Its XLR microphone inputs include phantom power and a limiter to curb unpredictable distortion during live events. The user interface has been designed for fast and intuitive use under stressful one-take-only situations, and with its large, angled LCD, the HD-P2 is perfect for any application from over-the-shoulder location recording to concert recording and commercial use.

More details

Send to a friend
Send to a friend

Tascam HD-P2 Portable High-Definition Stereo Recorder
Answering the call of remote recording engineers, the HD-P2 is the professional solution for the challenging requirements of live and on-location applications. It writes uncompressed Broadcast Wave audio files at up to 192-kHz/24-bit resolution for audiophile quality to CompactFlash media. Files are instantly available through the built-in high-speed FireWire computer connection and can be loaded into DAW projects with sample accuracy.
Unlike consumer MP3 sketchpads, the professional HD-P2 incorporates high-end features like SMPTE timecode and clock input for synchronization to video recorders or other external devices while in record or playback. Its XLR microphone inputs include phantom power and a limiter to curb unpredictable distortion during live events. The user interface has been designed for fast and intuitive use under stressful one-take-only situations, and with its large, angled LCD, the HD-P2 is perfect for any application from over-the-shoulder location recording to concert recording and commercial use.
Recipient :
Name of your friend ^* :
E-mail address of your friend ^* :
^* Required fields
or Cancel
Share on Facebook!
Print

More Info

Recording time

The following chart provides approximate recording times for the HD-P2. To use the chart, first find the audio resolution you plan to record in. Move down the chart to find the length of recording time you need. Then move left to see what size CompactFlash card you'll need to use.

CF Card	44.1k/16-bit	48k/16-bit	48k/24-bit	96k/24-bit	192k/24-bit
	Recording time depending on memory size and recording resolution (Hours:Minutes)
512MB	00:50	00:46	00:31	00:15	00:07
1GB	01:36	01:30	01:00	00:30	00:15
2GB	03:18	03:06	02:00	01:00	00:30
4GB	06:42	06:12	04:06	02:00	01:00
8GB	13:30	12:24	08:12	04:06	02:00

Main Features

Portable high-resolution stereo audio recorder for electronic news gathering and other recording tasks in the field
Recording media: Compact Flash
Sampling frequencies: 44.1, 48, 88.2, 96, 176.4, 192kHz
16-/24-bit Stereo or Mono recording
Record from 16-bit/44.1kHz up to 24-bit/192kHz
Audio file format: Time Stamped Broadcast Wave (BWF)
Two XLR balanced microphone inputs with phantom power and 20dB PAD
Two RCA unbalanced line inputs
Limiter on each analogue input
Low-cut filter on each analogue input
RCA unbalanced line output
Coaxial digital input and output (SPDIF)

XLR timecode input
BNC external clock input
Timecode chase with video reference
Built-in mono speaker and mono microphone
PS/2 Keyboard input
Large high resolution 240x160 LC Display
Uses AA batteries for over 5 hours of continuous operation
Easy and fast file transfer to PC or Mac via FireWire or CF card reader
Durable and lightweight housing for field use
Supplied accessory: Shoulder Belt

Specifications

General
Recording media		CompactFlash cards
File system		FAT16, FAT32
Recording format		Broadcast Wave audio files (BWF)
Quantization		16/24 bit linear
Sampling frequencies		44.1/48/88.2/96/176.4/192 kHz
External clock		SPDIF, Video (NTSC or PAL), LTC, Word
Frame rates		23.976, 24, 25, 29, 29.97 DF/NDF, 30 DF/NDF

Audio inputs and outputs
MIC input		2 x XLR-3-31 (1: GND, 2: HOT, 3:COLD)
Input impedance		1.3 k?
Input level		–60 dBu (Trim max) to –13.8 dBu (Trim min)
Maximum gain		46.2 dB
Headroom		16 dB (22 dB with limiter)
PAD		20 dB
LINE input		2 x RCA
Input impedance		10 k?
Input level		–46.2 dBV (Trim max) to 0 dBV (Trim min)
Maximum gain		46.2 dB
Headroom		16 dB
LINE output		2 x RCA
Output impedance		100 ?
Nominal output level		–10 dBV
Maximum output level		+6 dBV
DIGITAL input		RCA (coaxial)
Input impedance		75 ?
Audio format		IEC60958 (SPDIF)
Quantization		24 bit
DIGITAL output		RCA (coaxial)
Output impedance		75 ?
Audio format		IEC60958 (SPDIF)
Quantization		24 bit
PHONES		6.3-mm stereo phone jack
Maximum output power		55 mW + 55 mW (at 32-? load)
Built-in loudspeaker
Output power		500 mW
Impedance		16 ?

Other inputs and outputs
TIMECODE INPUT		XLR-3-31 (1: GND, 2: HOT, 3:COLD)
Input impedance		75 ?
VIDEO INPUT		BNC
Input impedance		75 ?
KEYBOARD		PS/2
FIREWIRE		IEEE 1394 (6-pin)
Format		IEEE1394 (Asynchronous)
Baud Rate		400 Mbps

Audio performance
Frequency response		20 Hz to 20 kHz, ±1.0 dB (44.1/48 kHz) 20 kHz to 40 kHz, +0.5 dB/–3.0 dB (88.2/96 kHz) 40 Hz to 80 kHz, +0.5 dB/–20.0 dB (176.4/192 kHz)
Dynamic range		> 105 dB(A) (MIC to LINE OUT, 44.1 kHz, 22-kHz LPF)
Total harmonic distortion		< 0.01 % (1 kHz, MIC to LINE OUT, max level (22–22,000 Hz), Trim min, 22-kHz LPF)
Crosstalk		> 80 dB (1 kHz)
Delay		1.5 ms (44.1 kHz) 0.7 ms (192 kHz)
Limiter attack time		< 25 µs
Limiter release time		< 50 ms
Low Cut filter		100 Hz (–18 dB/Oct.)
Phantom Power		+48 V, 10 mA

Power supply and other specifications
AC adapter input voltage		100 V AC, 50–60 Hz 120 V AC, 60 Hz 230 V AC, 50 Hz 240 V AC, 50 Hz
AC adapter output voltage		12 V DC (600 mA)
Batteries		8 x AA (SUM-3), Alkaline, NiMH (recommended), NiCd
Power consumption		6 W (with CompactFlash)
Operating temperature		0 °C to 35 °C
Display		240 x 160 px with backlight
Dimensions (W x H x D)		245 mm x 188 mm x 60 mm
Weight		1.2 kg (excluding batteries and AC adapter)
Supported operating systems		Windows XP, Mac OS X (10.3 or higher)
