SHD-MONFOCUS-SDI
New product
Availability: On order
Warning: Last items in stock!
Availability date:
5-inch Touchscreen with Daylight Visibility
Professional grade camera-top monitor that can power your DSLR or mirrorless camera.
Display: 5-inch, 1280x720, 294 PPI
Brightness: 800 nits
Input: Full-size SDI, Micro USB
Output: ⅛” Headphone Jack, 7.2v Power
Power: Sony L Series Battery (Not Included)
0 Item Items

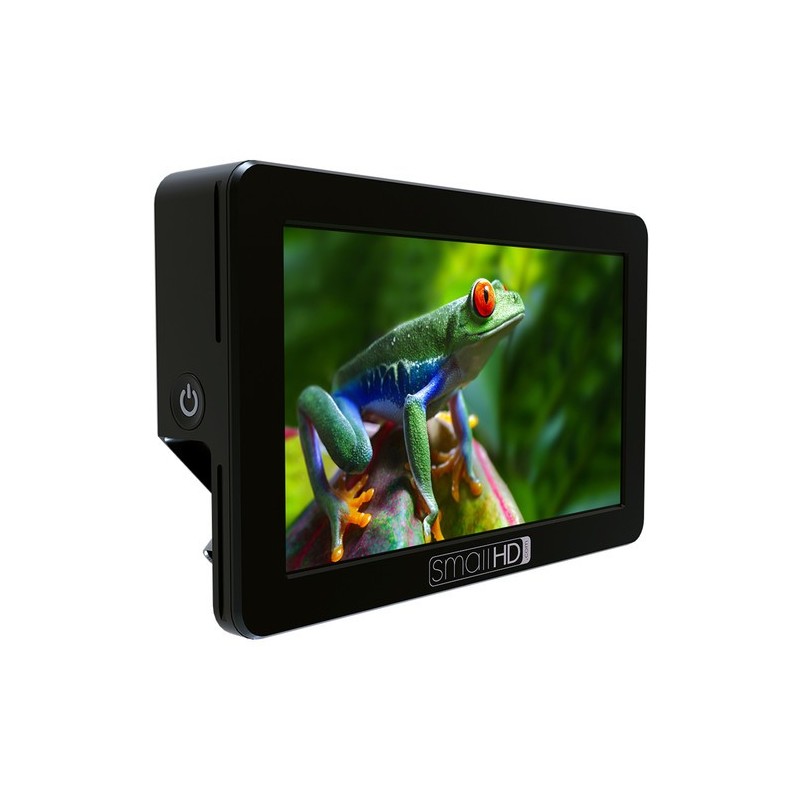

SmallHD Focus SDI Touch Screen 5"
5-inch Touchscreen with Daylight Visibility
Professional grade camera-top monitor that can power your DSLR or mirrorless camera.
Display: 5-inch, 1280x720, 294 PPI
Brightness: 800 nits
Input: Full-size SDI, Micro USB
Output: ⅛” Headphone Jack, 7.2v Power
Power: Sony L Series Battery (Not Included)
Recipient :
* Required fields
or Cancel
In the box:
The FOCUS is sure to add instant production value for unshielded shooters and DSLRs. Its bright screen, professional software tools and convenient editing are invaluable for shooters looking to do more with less speed.
5-inch touch screen visible in daylight
The FOCUS is the monitor that many photographers have been waiting for. With a lightweight and compact form factor, the FOCUS is bright enough to see and sharp enough to pull the focus.
• 800 shiny nits
• 5 inches, 1280x720 IPS LCD
• More pixels per inch than retina displays
High production value for small camera configurations
The FOCUS is an ideal monitor for DSLRs and mirrorless cameras because the Sony L Series battery powers the monitor and can also power the camera. With a battery adapter cable, the FOCUS extends the camera's range up to 4x, while offering a more usable display.
• Auxiliary power supply to DSLRs and non-mirror cameras
• SDI input
• ⅛ stereo headphone jack
• 6 watt power
Practical editing
Each FOCUS monitor will be delivered with a rocker arm mounted on a cold claw. Shooters will have a secure way to position their monitor while keeping a low profile.
• Allows the FOCUS to tilt 180 degrees for better visibility
• Safe and light attachment via a shoe adapter or ¼ "20
• Includes a shoe rack of its own for accessories such as microphones
• Shipped with each FOCUS monitor
Access to professional features
Waveform, False Color, Focus Assist, LUT 3D and Pixel Zoom are just a few professional software tools at your fingertips with the SmallHD FOCUS. Thanks to an intuitive user interface, we call Swipe OS, interacting and managing these powerful tools has never been easier.
Panel type IPS LCD touch screen
Diagonal size 5
Resolution 1280x720
Pixel Density (PPI) 294
Aspect ratio 16: 9
Active area 5
800 nits brightness
Color range 70% NTSC
Depth of color 10-bit processing
Angle of view 160 degrees
White LED backlight type
Adjustable backlighting Yes
Adaptive temperature temperature No
Types of input signals / formats
3G-SDI YCC 4: 2: 2 @ 10bit: 1080p60 1080p59.94, 1080p50, 1080i60, 1080i59.94, 1080i50
HD-SDI RGB / YCC 4: 2: 2 and 4: 4: 4, 1080p60, 1080i60,1080i59.94,1080i50, 1080p30, 1080p25, 1080p24, 1080p23.98, 1080pSF23.98, 1080pSF24, 1080pSF25, 1080pSF29.97, 720p60, 720p59.94, 720p50
SD-SDI YCC 4: 2: 2 @ 10 bits: 480i29.97, 576i25
HDMI not supported
Component not supported
Composite not supported
SDI Audio
Types of output signals / formats
3G-SDI not supported
HD-SDI not supported
SD-SDI not supported
HDMI not supported
Component not supported
Composite not supported
Stereo audio output (headphone)
Connector type
SDI 1x full size SDI input
Audio ⅛ "Stereo mini-jack
Power supply 1 x battery location Sony L-Style
3.5mm output barrels (external, internal 1.1mm) output barrel to power the cameras via a specific adapter of the device.
USB 1x Micro-USB for future use
controls
Capacitive touch screen of the primary control interface
Save / Capture Capture Tool
Data I / O
SD card for image capture / LUT overlay Loading, firmware updates
Wireless compatible with the SmallHD BTR1 wireless remote
power
Connector Type 1x Sony L-Style Battery Slot, 1x Cylindrical Connector to Power Camera
Voltage 6.0 - 8.4V
Power consumption 5.04W
Recommended battery power only
Overload protection Yes
Li-ion Chemistry Battery
The output voltage (VDC) reflects the input voltage of the battery
Capacity of the battery (mAh) 2000mAh - 6300mAh
Charging time (hours) Sleepy monitor withstand battery charge
ecological
CE, FCC, IC compliance
Operating temperature 32F to 158F
Screen Protectors with UltraClear Screen Protector
Height 3.34 "(8.48cm)
Width 5.24 "(13.31cm)
Depth / Length .98 "(2.49cm)
Weight (article only without battery) 6.6oz (187.11g)
Weight (packaged) 4.17 oz (118.22g)
Mounting points (3) of ¼ of 20 points of thread (top, bottom and right)
software
Pixel Zoom (type) 2x and 4x with smooth pan by pinch zoom gesture
Picture guides Preset and customizable appearance presets
DSLR Scale Canon 5DMkii & Canon 7D
Custom subcutaneous scale only
Anamorphic-1.33 squeeze, 1.5x, 1.66x, 2.0x
Rotate image (manual / automatic) Automatic or manual control
Flip image (manual / automatic) Automatic or manual control
Focusing assistance (Colors) User color adjustable style and intensity
User adjustable intensity
Spectrum in false colors, Arri style and fully customizable user
Zebra Dual - User Configurable
Luma & RGB Waveform Style, Fully Customizable with User / Region of Interest Highlighted
Scope of the vector Yes
PIP No
RGB Parade Fully customizable by the user
Histogram Luma & RGB Style
Horizon indicator No
Image capture with button and dedicated image gallery
custom loadable TUBA that looks at the pages or scale of the color calibration system via the Settings menu
LUT Creation No
Downstream LUT applied to the output preview page
LUT Import via SD card or USB storage device
Image opacity slider and blink setting
Blue only No
Audio Meters Up to 8 channels
