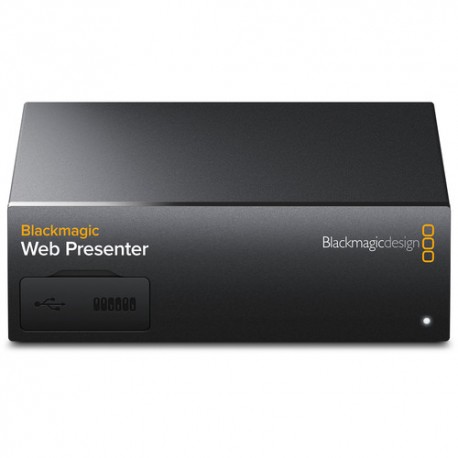

Blackmagic Design Web Presenter for Streaming

Reference: BM-BDLKWEBPTR

Condition: New product

Availability: Short delay

Blackmagic Web Presenter makes any SDI or HDMI video source appear as a USB webcam for higher quality web streaming using software such as Skype or streaming platforms such as YouTube Live, Facebook Live, Twitch.tv, Periscope and more! Blackmagic Web Presenter includes 12G-SDI and HDMI inputs, XLR microphone input, HiFi audio input, Teranex quality down conversion and a 2 input live switcher when used with the optional Teranex Mini Smart Panel.

More details

Send to a friend
Send to a friend

Blackmagic Design Web Presenter for Streaming
Blackmagic Web Presenter makes any SDI or HDMI video source appear as a USB webcam for higher quality web streaming using software such as Skype or streaming platforms such as YouTube Live, Facebook Live, Twitch.tv, Periscope and more! Blackmagic Web Presenter includes 12G-SDI and HDMI inputs, XLR microphone input, HiFi audio input, Teranex quality down conversion and a 2 input live switcher when used with the optional Teranex Mini Smart Panel.
Recipient :
Name of your friend ^* :
E-mail address of your friend ^* :
^* Required fields
or Cancel
Share on Facebook!
Print

More Info

connections

SDI video inputs: 1x
SDI video outputs: 1x program output, 1x loop output
SDI Throughput: 270Mb, 1.5G, 3G, 6G, 12G
HDMI video inputs: 1x
HDMI video outputs: 1x loop output
Analog video inputs: None
Analog video outputs: None
Analog audio inputs: 1 x XLR. 2 x RCA HiFi.
Analog audio outputs: None
Timecode Login: None
Reference entry: None
RCA: 2x HiFi analog audio input
XLR: 1x input supporting microphone and line levels
HDMI 2.0: 1x input, 1x loop output, (2 integrated audio channels)
USB Webcam: 1x
USB 2.0: 1x Type B
Mini USB: 1x for software updates

standards
Video Standards for Broadcast
720p by USB.
HDMI Video Standards
SD video tandards
525i59.94 NTSC, 625i50 PAL
HD video standards
720p50, 720p59.94, 720p60
1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p50, 1080p59.94, 1080p60 1080i50, 1080i59.94, 1080i60
Ultra HD video standards
2160p23.98, 2160p24, 2160p25, 2160p29.97, 2160p30, 2160p50, 2160p59.94, 2160p60
12G SDI Video Standards
SD video standards
525i59.94 NTSC, 625i50 PAL
HD video standards
720p50, 720p59.94, 720p60 1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p50, 1080p59.94, 1080p60 1080PsF23.98, 1080Psf24, 1080psf25, 1080psf29.97, 1080psf30 1080i50, 1080i59.94, 1080i60
2K video standards
No
Ultra HD video standards
2160p23.98, 2160p24, 2160p25, 2160p29.97, 2160p30, 2160p50, 2160p59.94, 2160p60
4K video standards
No
Hardware frame buffer
Supports all UVC and UAC webcam drivers via USB connection.
Acquisition on the computer
USB Webcam for Mac, Windows, Linux and all operating systems that support 720p HD webcams.
Control
Basic control of parameters
Mini switches
Integrated control panel
No. Supports the Teranex Mini Smart Panel with a 2.2-inch color screen for video preview, meter display, and status information.
Optional control via the front panel
Front mounted Smart Panel with LCD display, thumbwheel and six setting buttons.
Device Control
No
Software
Compatible platforms and software
YouTube Live, Facebook Live, Twitch.tv, Periscope, Skype, Open Broadcaster and XSplit Broadcaster.
