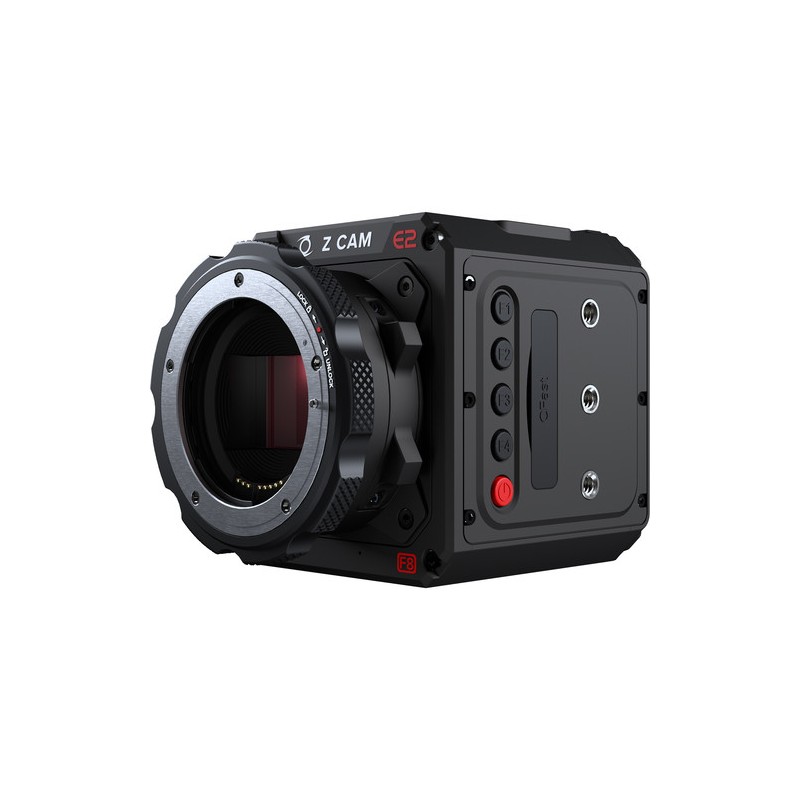

Z CAM E2-F8 Full-Frame 8K Cinema Camera (EF)

Reference: ZC109871

Condition: New product

Availability: This product will be available later

Shoot professional high-definition cinema footage with the Z CAM E2-F8 Full-Frame 8K Cinema Camera with a Canon EF lens mount. The camera features a full-frame sensor with 10-bit 4:2:2 color support and nominal 14 stops of dynamic range, supports timecode, shoots up to 8K at up to 30 fps, and records data up to 300 Mb/s onto CFast 2.0 media.

Supported recording formats include ZRAW format, MOV and MP4 using H.265 for 10-bit recording, while H.264 supports 8-bit recording, and firmware 0.88 allows the camera to record in the ZRAW format. Its HDMI 2.0 port supports 4K60, 10-bit 4:2:2 video output. Audio is recorded in 24-bit 48 kHz using AAC or PCM (PCM for MOV format only) through its 3.5mm stereo jack or via a separately available XLR connector using its 5-pin LEMO port.

More details

Informeer een vriend
Informeer een vriend

Z CAM E2-F8 Full-Frame 8K Cinema Camera (EF)
Shoot professional high-definition cinema footage with the Z CAM E2-F8 Full-Frame 8K Cinema Camera with a Canon EF lens mount. The camera features a full-frame sensor with 10-bit 4:2:2 color support and nominal 14 stops of dynamic range, supports timecode, shoots up to 8K at up to 30 fps, and records data up to 300 Mb/s onto CFast 2.0 media.

Supported recording formats include ZRAW format, MOV and MP4 using H.265 for 10-bit recording, while H.264 supports 8-bit recording, and firmware 0.88 allows the camera to record in the ZRAW format. Its HDMI 2.0 port supports 4K60, 10-bit 4:2:2 video output. Audio is recorded in 24-bit 48 kHz using AAC or PCM (PCM for MOV format only) through its 3.5mm stereo jack or via a separately available XLR connector using its 5-pin LEMO port.
Ontvanger :
Naam van uw vriend ^* :
E-mail adres van uw vriend ^* :
^* Verplichte velden
of Annuleren
Deel op Facebook
Print

More Info

Included:

Z CAM E2-F8 Full-Frame 8K Cinema Camera (EF Mount)
LEMO Power Cable
AC/DC Power Adapter
Lens Mount Cap

The E2-F8 can be controlled via serial ports, a 2.5mm LANC connector, a USB Type-C port, Ethernet port, or by the Z Camera iOS app to control the camera via Wi-Fi and to view a live image preview and to configure settings. The camera can record time-lapse, slow motion, and can even live stream via its Gigabit Ethernet port. You can also control it locally by the buttons along the side of the camera.

The E2-F8 can be powered by a separately available battery using the built-in NP-F-series battery mount, or you can power the camera using a separately available power adapter using its 2-pin LEMO port. The camera also features a 12 VDC 2-pin LEMO power output to provide power to separately available accessories.

irmware 0.88
Firmware 0.88 enables ZRAW recording to the camera.
8K Capture and Recording

    Unburdened by a recording time limit, you can record 8K at up to 30 fps for up to the limit of your recording media's capacity
    CMOS sensor with 14 stops of dynamic range
    The camera supports ZRAW, REC. 709, Z-Log2, FLAT, and HLG
    H.265 (10-bit color) internal recording on CFast 2.0 cards
    4K60, 10-bit 4:2:2 video output through HDMI 2.0 is supported
    Full metal housing for efficient heat dissipation

Interfaces and Expandability

    USB 3.0 Type-C for camera control and data transformation only
    Two serial ports for camera control
    Ethernet port for live view, control, and file transfer to browser or a computer running Z CAM software
    LANC port for remote control including power on/off

iOS App
Z Camera is a mobile application for camera live preview and control through 5G or 802.11n Wi-Fi. It allows you to start/stop recording and adjust the camera settings remotely, and also has advanced features on camera live preview.
Camera Settings

    White balance: Auto, preset, manual (2300 to 7500K)
    Focus modes: MF, AF, CAF
    Image: Brightness, contrast, saturation, sharpness
    LUT: REC. 709, Z-Log2, FLAT, HLG
    Timecode: Current time, manual input

Camera Body

    Made from aluminum for strength and heat dissipation
    2-pin LEMO 12 VDC power output
    Powers from included 2-pin LEMO 12 VDC adapter or optional NP-F-series batteries
