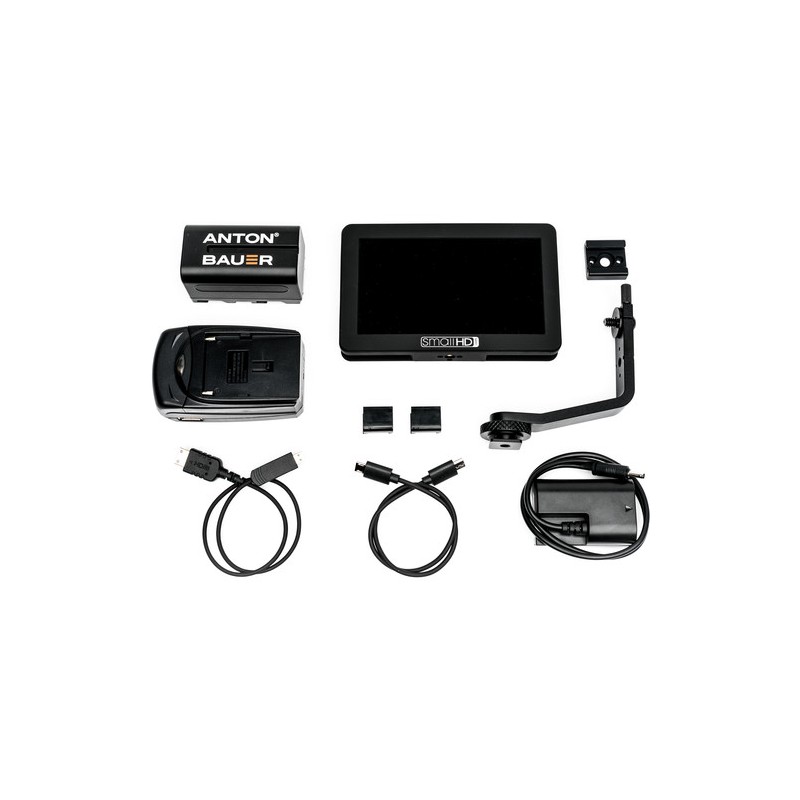

In the box:

• FOCUS 5" On-Camera Monitor

• FOCUS Tilt Arm

• SmallHD Micro-HDMI Male to Micro-HDMI Male Cable (1')

• FOCUS to Canon LP-E6 Power Adapter

• Sony NPF L-Series Battery & Charger

• SmallHD Micro-HDMI Male to Mini-HDMI Male Cable (1')

• Micro-USB Type-B Male Cable (12")

The FOCUS is sure to add instant production value for unshielded shooters and DSLRs. Its bright screen, professional software tools and convenient editing are invaluable for shooters looking to do more with less speed.

5-inch touch screen visible in daylight

The FOCUS is the monitor that many photographers have been waiting for. With a lightweight and compact form factor, the FOCUS is bright enough to see and sharp enough to pull the focus.

• 800 shiny nits
• 5 inches, 1280x720 IPS LCD
• More pixels per inch than retina displays

High production value for small camera configurations

The FOCUS is an ideal monitor for DSLRs and mirrorless cameras because the Sony L Series battery powers the monitor and can also power the camera. With a battery adapter cable, the FOCUS extends the camera's range up to 4x, while offering a more usable display.

• Auxiliary power supply to DSLRs and non-mirror cameras
• HDMI micro input with port protection
• ⅛ stereo headphone jack
• 6 watt power

Practical editing

Each FOCUS monitor will be delivered with a rocker arm mounted on a cold claw. Shooters will have a secure way to position their monitor while keeping a low profile.

• Allows the FOCUS to tilt 180 degrees for better visibility
• Safe and light attachment via a shoe adapter or ¼ "20
• Includes a shoe rack of its own for accessories such as microphones
• Shipped with each FOCUS monitor

Access to professional features

Waveform, False Color, Focus Assist, LUT 3D and Pixel Zoom are just a few professional software tools at your fingertips with the SmallHD FOCUS. Thanks to an intuitive user interface, we call Swipe OS, interacting and managing these powerful tools has never been easier.

Panel Type     IPS LCD Touchscreen
Size Diagonal     5
Resolution     1280x720
Pixel Density (PPI)     294
Aspect Ratio     16:9
Active Area     5.0"
Brightness     800 nits
Color Gamut     70% NTSC
Color Depth     10-bit processing
Viewing Angle     160 Degrees
Backlight Type     White LED
Temperature Adaptive Color     No
Input Signal Types/Formats
3G-SDI     Not Supported
HD-SDI     Not Supported
SD-SDI     Not Supported
HDMI     Supports UHD-1 4K at 30/29.97 @ RGB 444 8bit, YCC 444 8bit, YCC 422 12 bit & 24/23.98 @ RGB 444 10/8 bit, YCC 444 10/8bit, YCC 422 12 bit, YCC 4:2:2, 8/10/12 bit color in RGB & YCC 4:4:4, 1080p60, 1080p59.94, 1080p50, 1080p30, 1080p29.97 1080p25, 1080p24, 1080p23.98,1080i120, 1080i119.88, 1080i100, 1080i60, 1080i59.94, 1080i50, 720p120, 720p119.88, 720p/100, 720p60, 720p59.94 , 720p50, 720p30, 720p29.97, 720p25, 720p24, 720p23.98, 480p59.94, 480p60, 480p100, 480p119.88, 480p120, 480p239.76, 480p240, 576p50, 576p100, 576p200, 480i59.94, 480i60, 480i119.88, 480i120, 480i239.76, 480i240, 576i50, 576i100, 576i200
Component     Not Supported
Composite     Not Supported
Audio     HDMI
Output Signal Types/Formats
3G-SDI     Not Supported
HD-SDI     Not Supported
SD-SDI     Not Supported
HDMI     Not Supported
Component     Not Supported
Composite     Not Supported
Audio     Stereo Out (headphones)
Connector Type
HDMI     1x Micro-HDMI Input
Audio     ⅛” Stereo mini-jack
Power In     1x Sony L-Style Battery slot, barrel output for powering cameras via adaptor (NP-FW50 Sony & LP-E6 Canon). More adaptors coming soon
Power Out     Barrel (3.5mm outer, 1.1mm inner)
USB     1x Micro-USB for camera control
Controls
Primary Control Interface     Capacitive Touchscreen
Record/Capture     Capture Tool
Data I/O
Storage     SD Card for Image Capture / Overlay, LUT Loading, Firmware Upgrades
Wireless     Compatible with SmallHD BTR1 Wireless Remote
Power
Connector Type     1x Sony L-Style Battery slot, 1x barrel connector for powering camera
Voltage     6.0 - 8.4V
Recommended Power Supply     Battery Only Device
Overload Protection     Yes
Battery Chemistry     Li-ion
Output Voltage (VDC)     Mirrors Input Voltage from battery
Battery Capacity (mAh)     2000mAh - 6300mAh
Battery Charging Time (hours)     Monitor does not support the charging of batteries
Environmental
Compliance     CE
Operating Temperature     32F to 158F
Height     3.3" (8.38cm)
Width     .75" (1.91cm)
Depth/Length     5.25" (13.34cm)
Weight (Item Only without battery)     6.1oz (172.93g)
Weight (Packaged)     4.16oz (117.93g)
Mount Points     (3) ¼-20 thread points (top, bottom, & right side)
Software
Pixel Zoom (type)     2x & 4x with smooth pan via pinch zoom gesture
Frame Guides     Preset Aspect Ratios & Customizable
DSLR Scale     Canon 5DMkii & Canon 7D
Custom Scale     Underscan Only
Anamorphic De-Squeeze     1.33x, 1.5x, 1.66x, 2.0x
Image Rotate(Manual/Automatic)     Automatic or Manual Control
Image Flip (Manual/Automatic)     Automatic or Manual Control
Focus Assist (Colors)     User Adjustable Color Style and Intensity
Peaking     User Adjustable Intensity
False Color     Spectrum, Arri Style and Fully User Customizable
Zebra     Dual - User Configurable
Waveform     Luma & RGB Style, Fully User Customizable w/ Region of Interest Highlighting
Vectorscope     Yes
PIP     No
RGB Parade     Fully User Customizable
Histogram     Luma & RGB Style
Horizon Indicator     No
Image Capture     With Dedicated Button and Image Gallery
Custom LUTS     Loadable as Looks on Pages or as Systemwide Color Calibration via the settings menu
LUT Creation     No
LUT Downstream     Applied on Output Preview Page
LUT Import     Via SD Card or USB Storage Device
Image Overlay     Opacity Slider and Blink Setting
Blue Only     No
Audio Meters     Up to 8 channel
